Motors
PN35S-13N

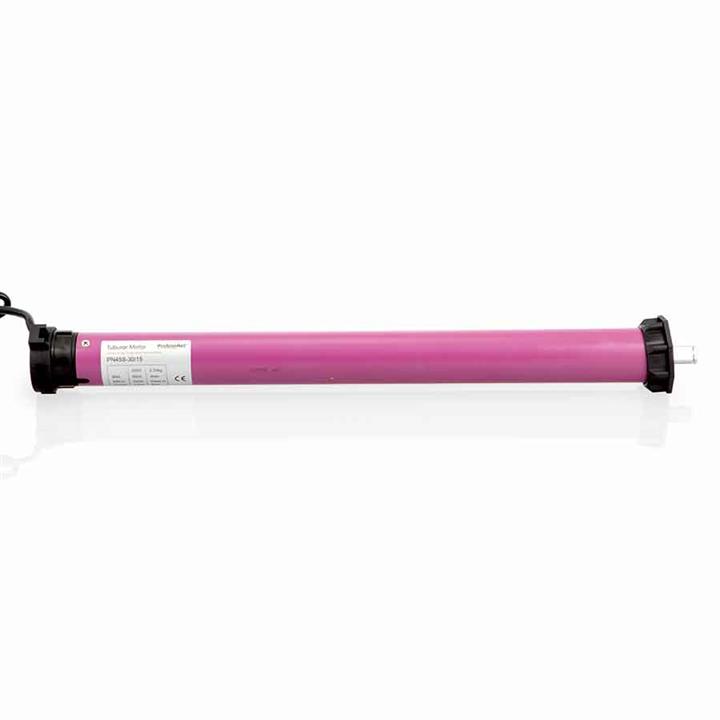

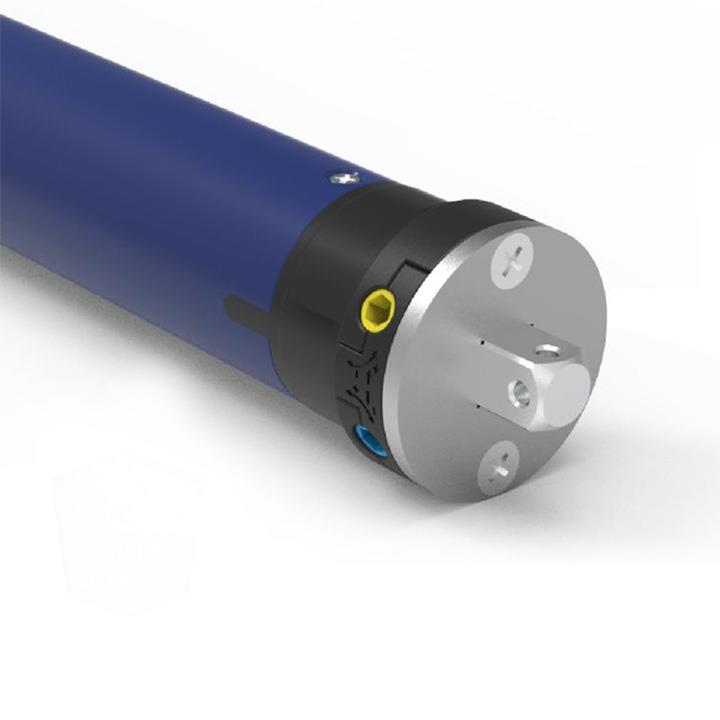

Tubular motor 13Ν
230V, 13N. Mechanical limit-switches with progressive adjustment of opening and closing positions
Quick and easy installing on new and existing blinds and awnings

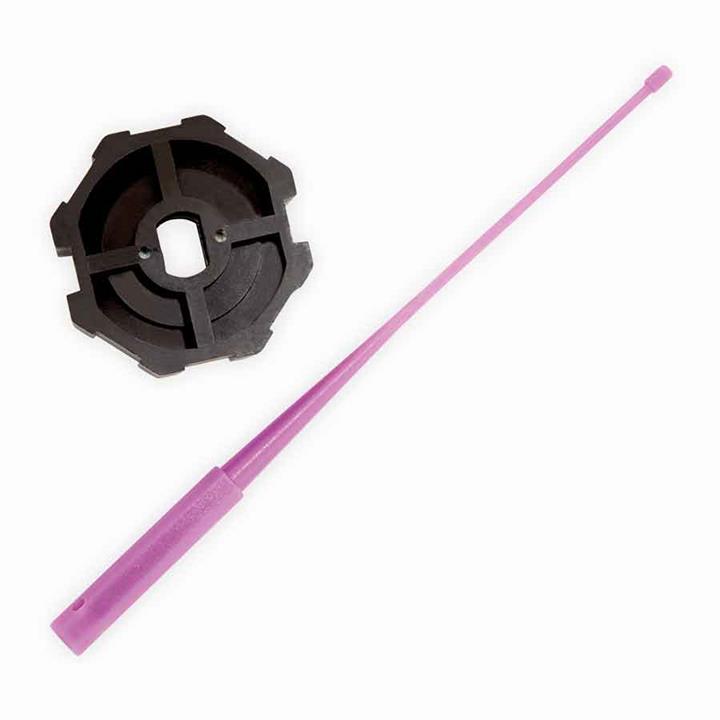

Complete with motor bracket and Ø 40 mm octagonal shaft adapter for rolling shutters or round for awnings.
Main characteristics
- Rated torque 13 N. m
- Rated speed 17 rpm
- Rated power input 170W
- Tube diameter 35mm
- Rated current 0,75A
- Running time 4 min
- Maximum number of turns 42
- Dimension 512mm
