TORINO-06
Swing motor up to 5 m door leaf, embedded Profelmnets control panel

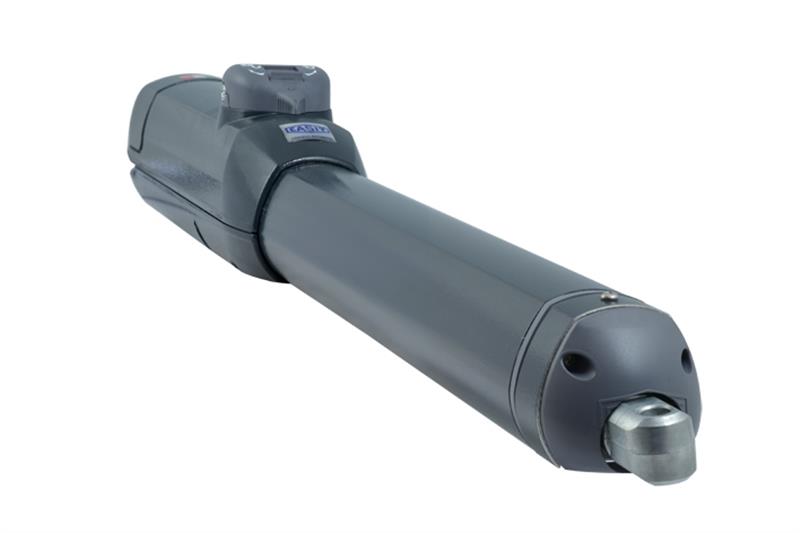

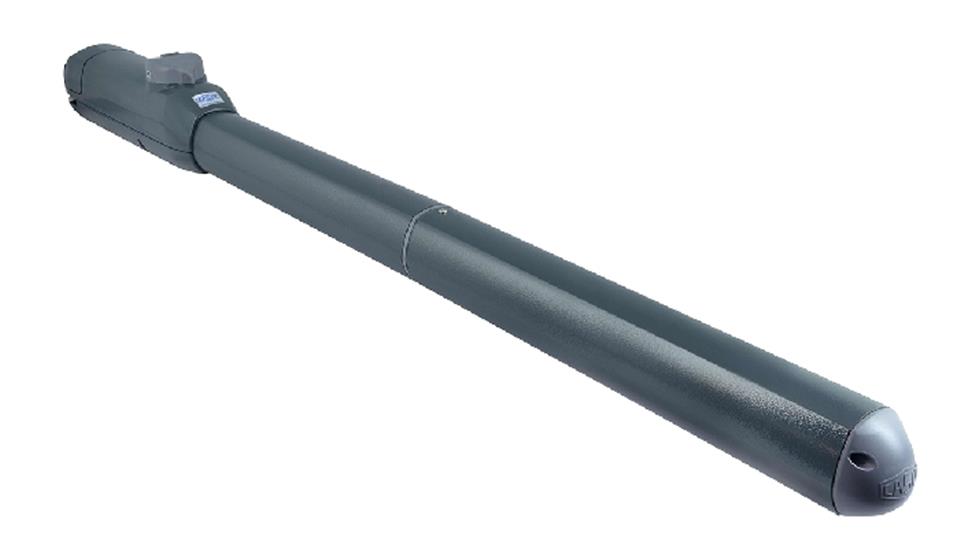

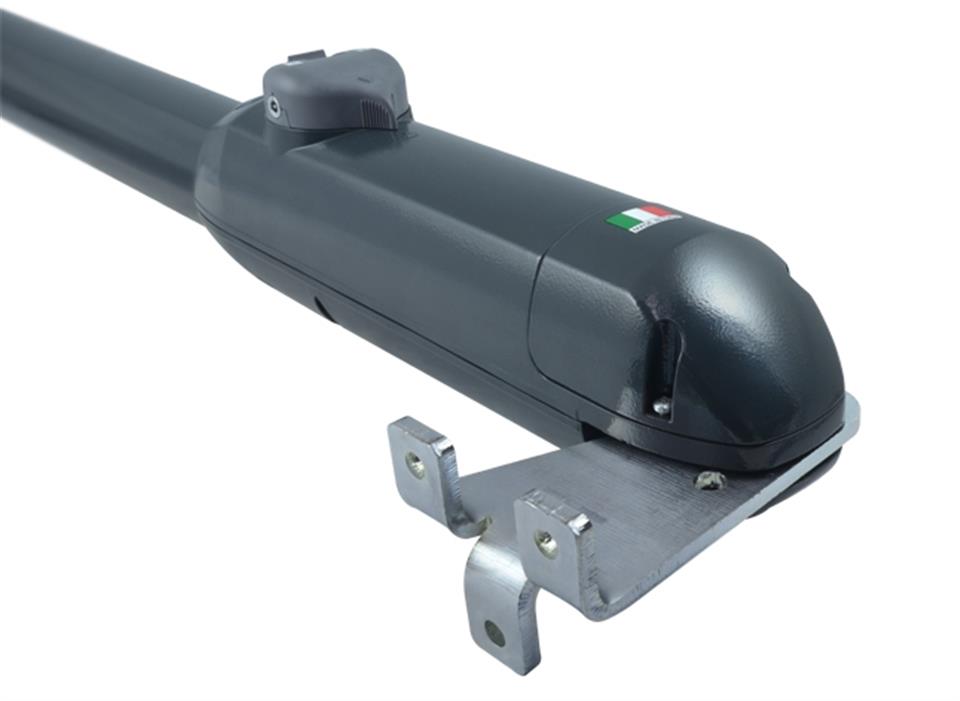

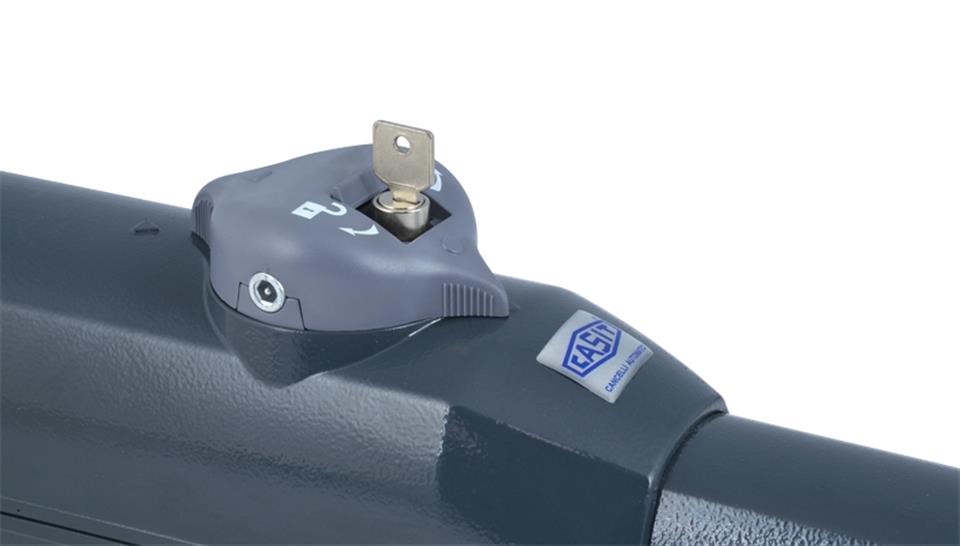

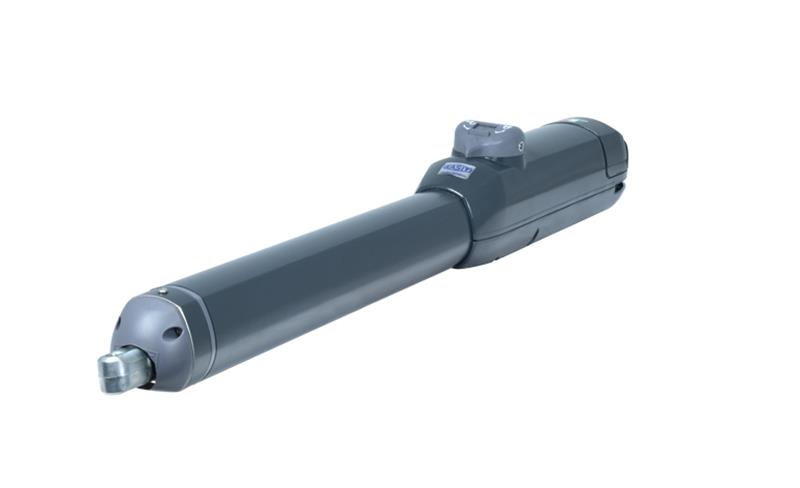

Torino-06 is swing motor for gates up to 5 mt.It is powerful and easy to install. It is perfect solution to suit most of the residential and commercial swing gates. Electromechanical blocked rams, completely in aluminium. In case of power failure, you can unlock the gate through the release key supplied with the motors. Embedded Profelmnet's control panel, offering the most reliable solution for the swing gate.
Main motor technical data
- Maximum doορ leaf up to 5 meters
- Motor power 230V/300W
- Maximum door weight 200 kg
- Maximum thrust 300N
- Motor rpm 1400
- Protection rating IP44

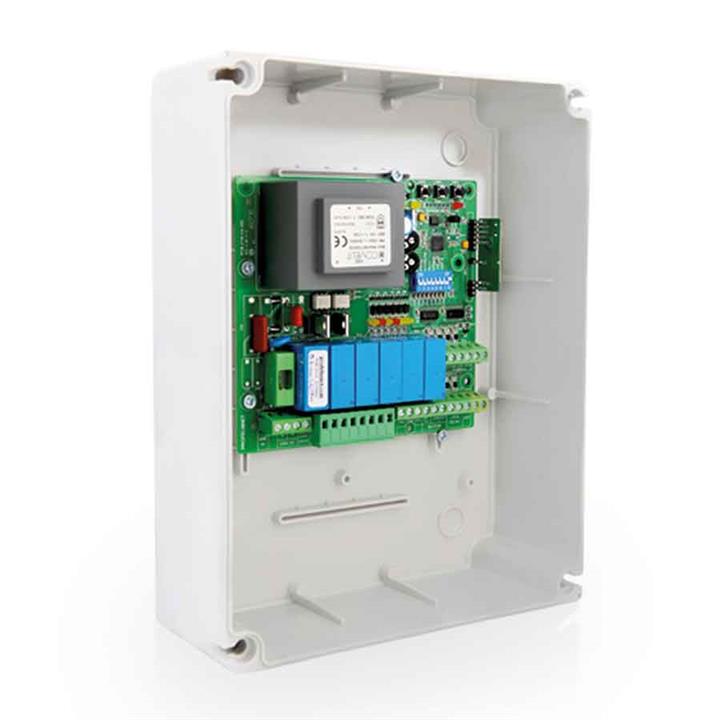

Main control board specification
- Power supply 110VAC/60Hz or 230VAC/50Hz
- Separate limit switch inputs for the motor
- RF frequency standard/rolling codification
- Motor brake function. It is recommended for heavy motors
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- External button: N.O contact for up to 100m external activation button connection
- Photocell contact input at 24VAC/1,1VA
- Adjustable electronic MOTOR torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
