SPARK 180
Rolling shutter automation for residential and industrial use up to 200kg

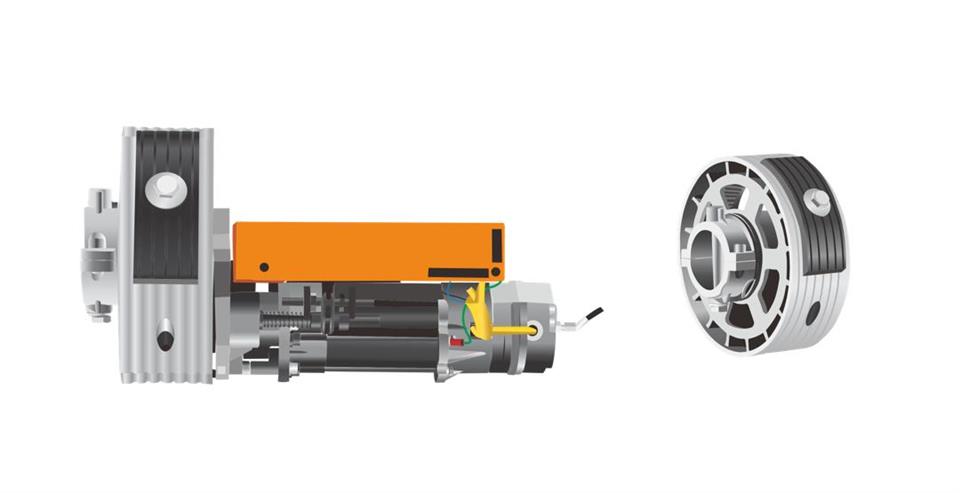

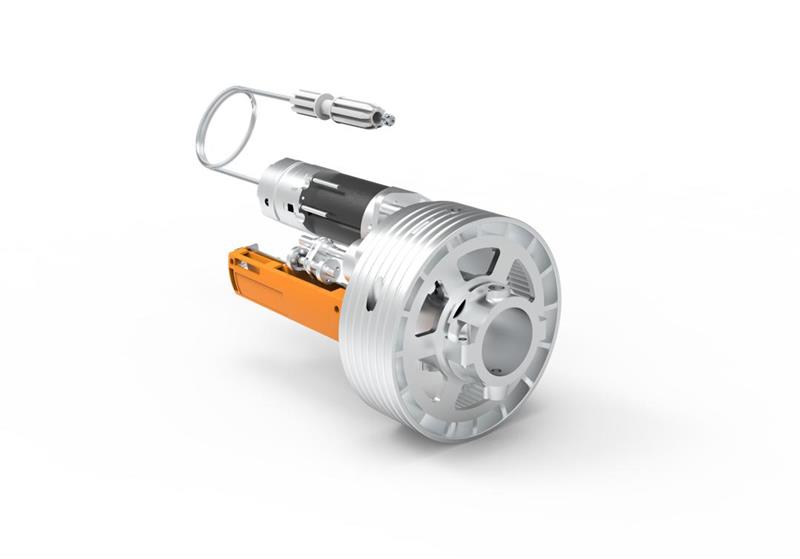

Spark series is rolling shutter automation for residential or industrial use. It is suitable for roling shutters up to 200kg. It contains the unlocking cable that is up to 5m. Integrated limit switches allow precise adjustment of the shutter opening and closing positions. The motor has 2 years guarantee.
Technical data
- Maximum gate weight : 200kg
- Power supply : 230V
- Motor power: 580Watt
- Maximum thrust: 200Ν
- Motor speed: 10RPM
- Diameter winding flange: 200-220mm
- Diameter drive shaft: 40mm-60mm
