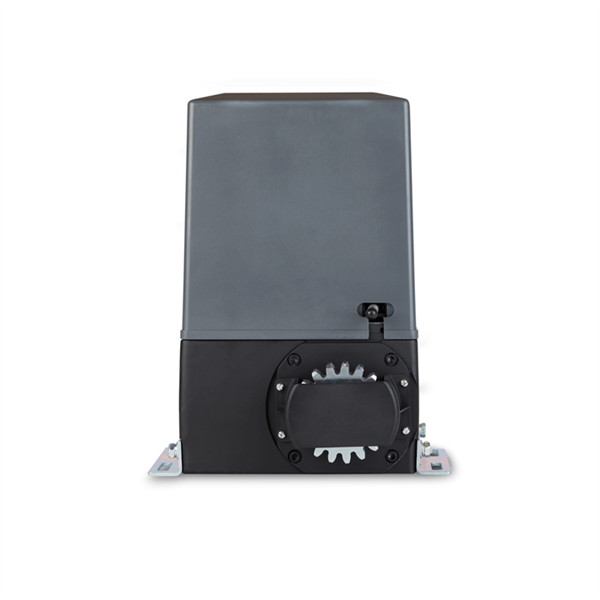

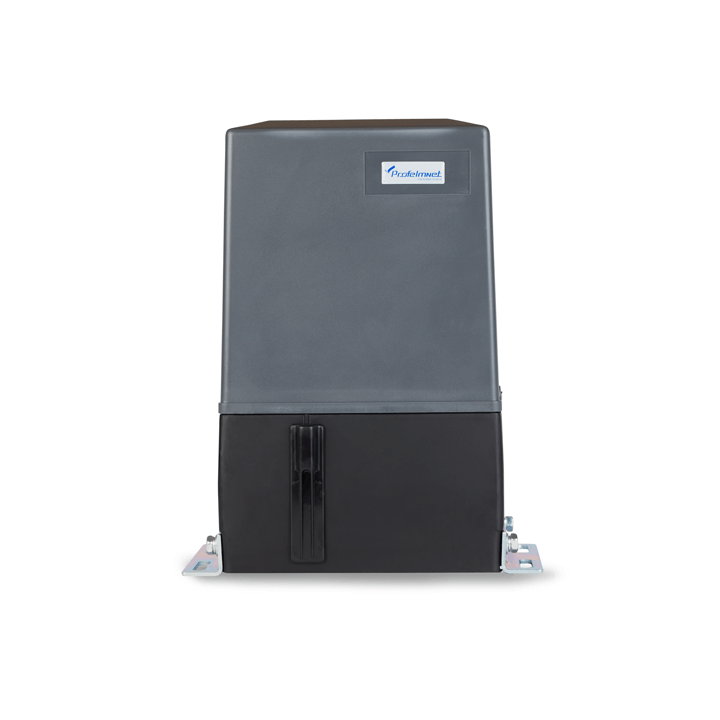

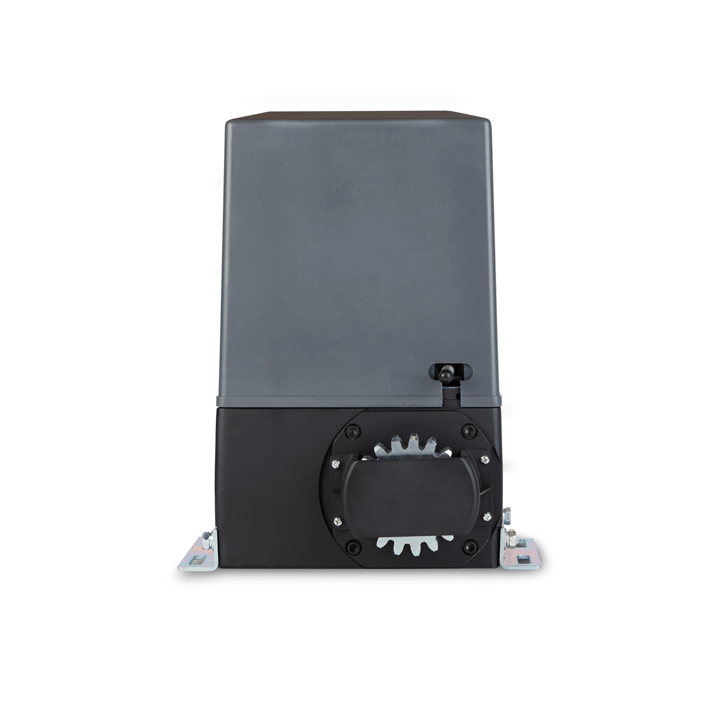

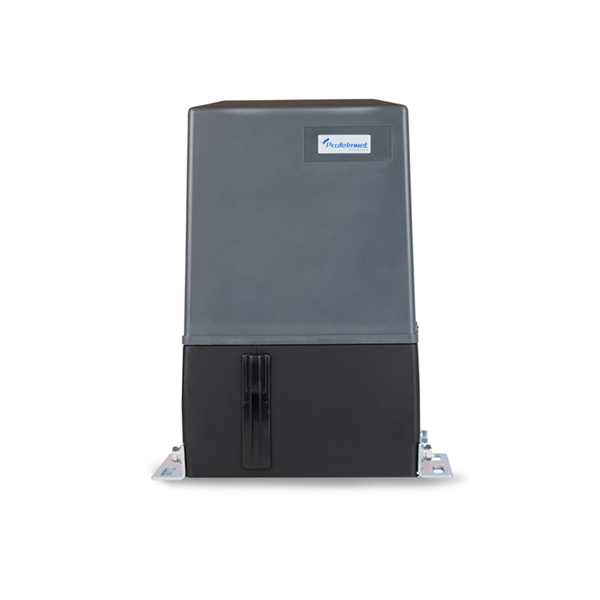

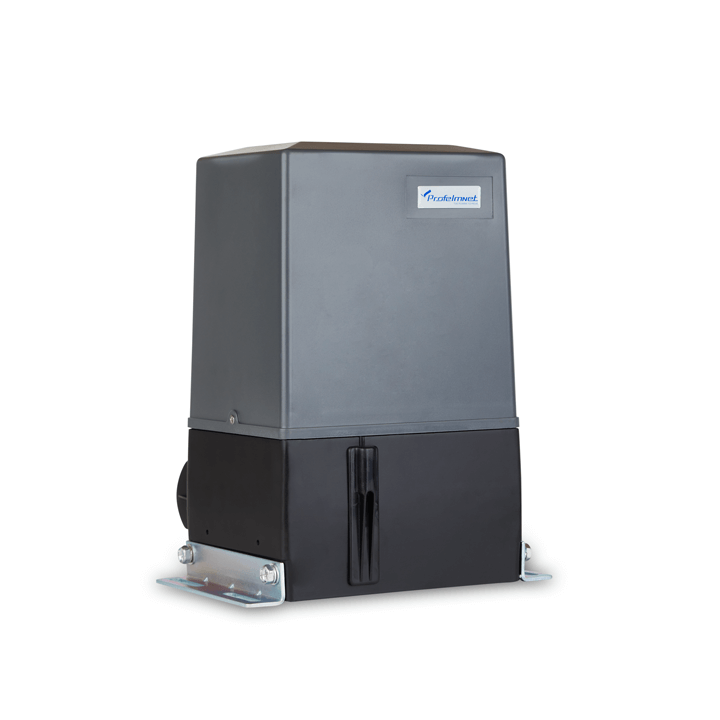

HERMES-1500
Sliding motor for gates up to 1500 kg, embedded Profelmnet control panel

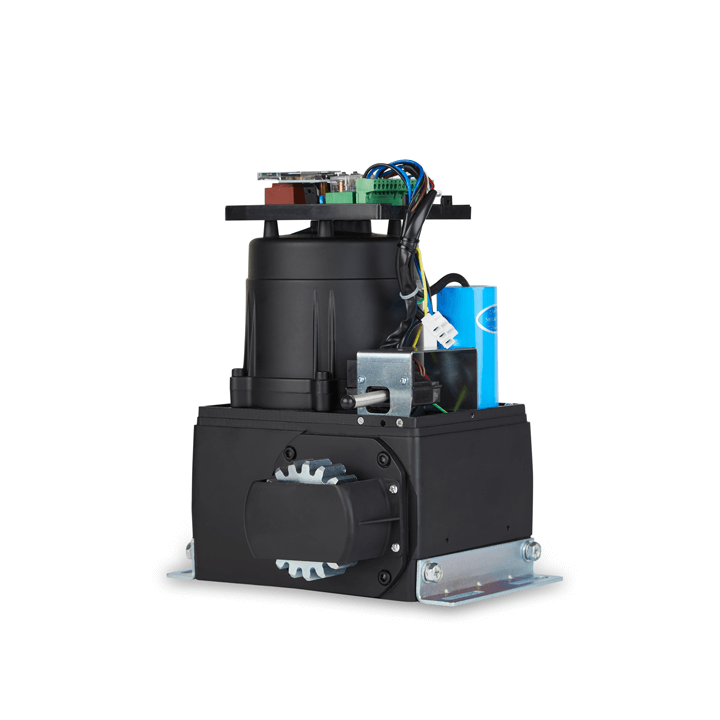

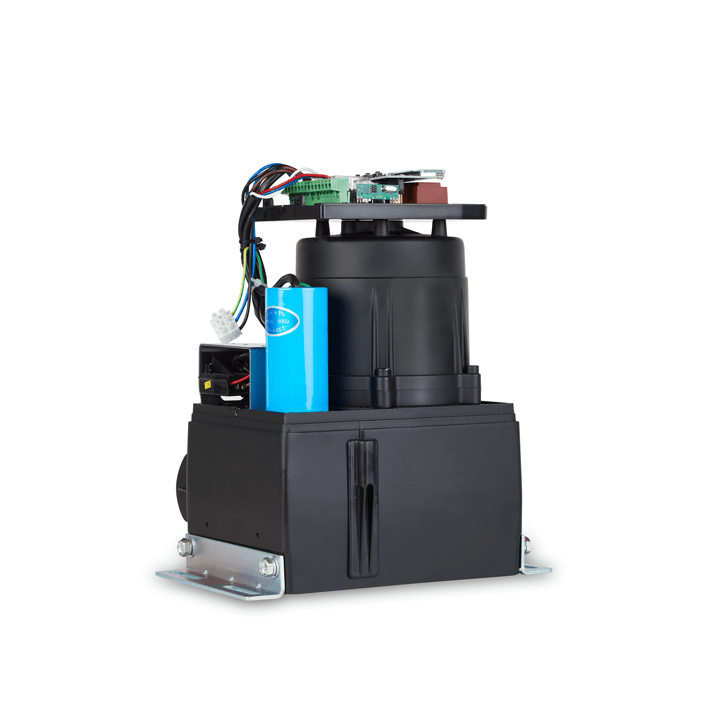

Hermes-1500 is a sliding gate motor, for gates that weight up to 1500kg. HERMES-1500 is ideal for heavy-duty gates, as the moving parts of the engine are in oil. Powerful and quiet. Its size is appropriate for installations with limited space.
Main characteristics
- Maximum door weight 1500 kg
- Motor power 230V/450W
- Opening time 12 meters / minute
- Motor rpm 1400
- Protection rating IP44
- Weight 10 kg

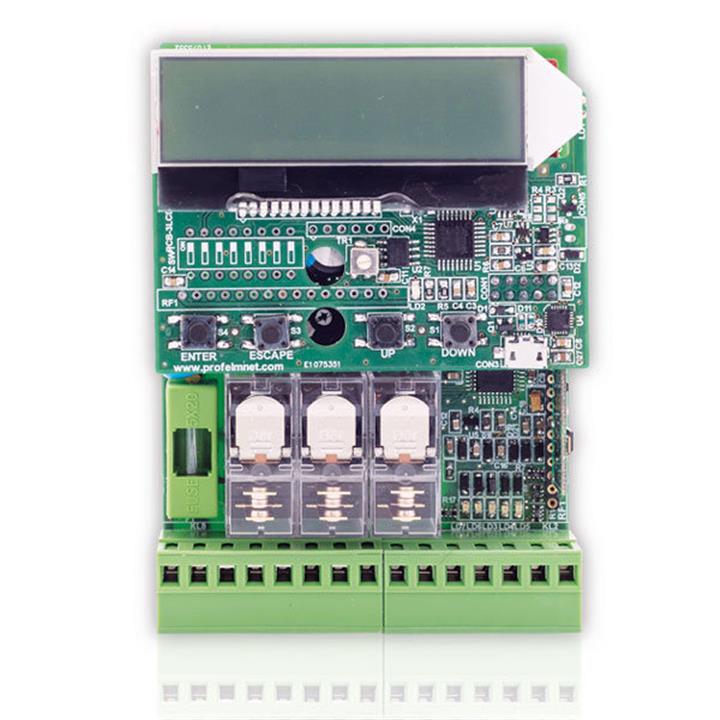

Main control board specifications
- Power supply 230 VAC / 110 VAC
- Power handling up to 1200 watt

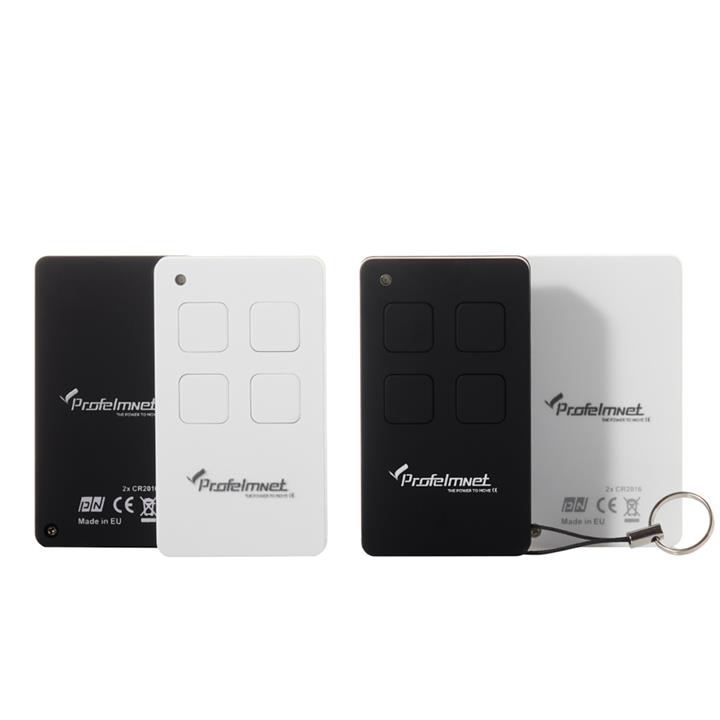

- Memory up to 300 transmitters
- Adjustable electronic motor torque
- Adjustable deceleration
- Pedestrial function
- Adjustable auto close
- Soft start and stop
- Input for soft-edge
- Input for photocells
- Motor break
- Adjustable codification
- Access control possibility
- Size: 95mm X 45 mm X 13mm including ABS housing
