Control boards
6033

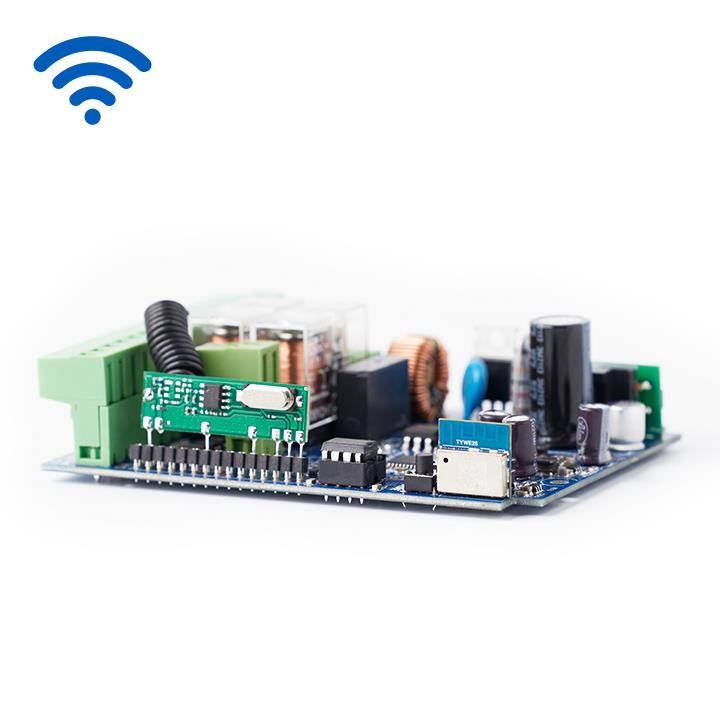

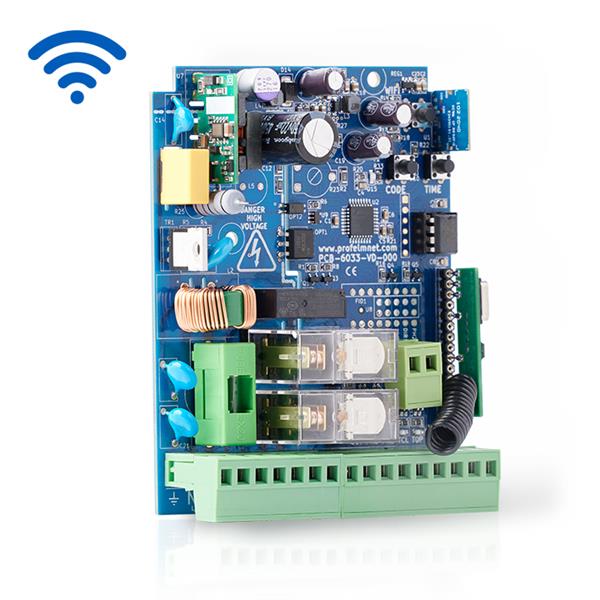

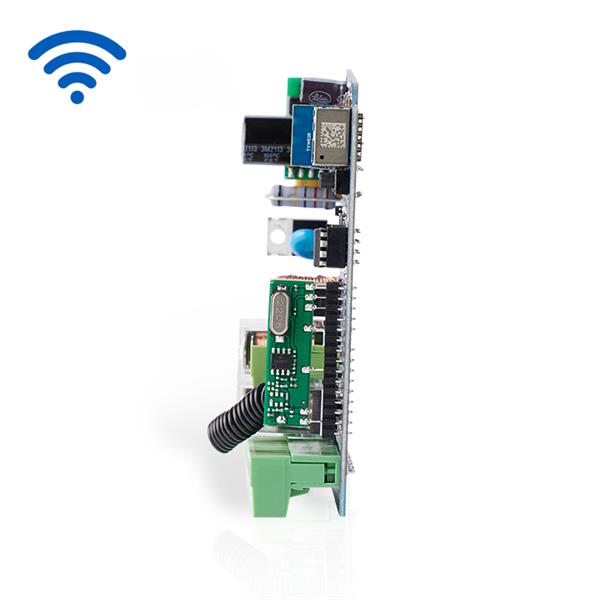

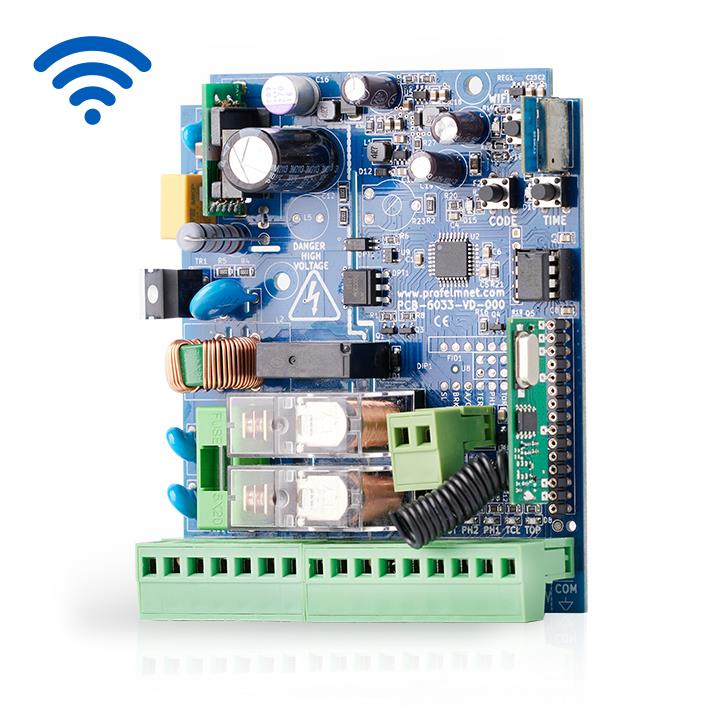

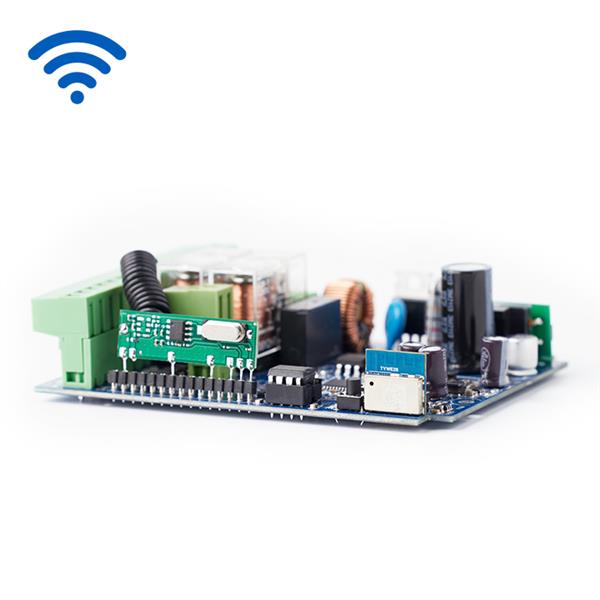

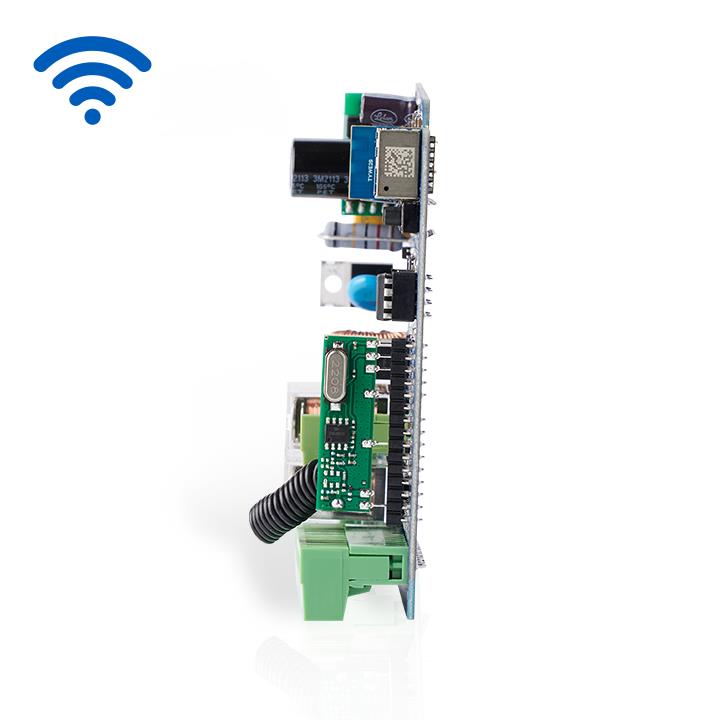

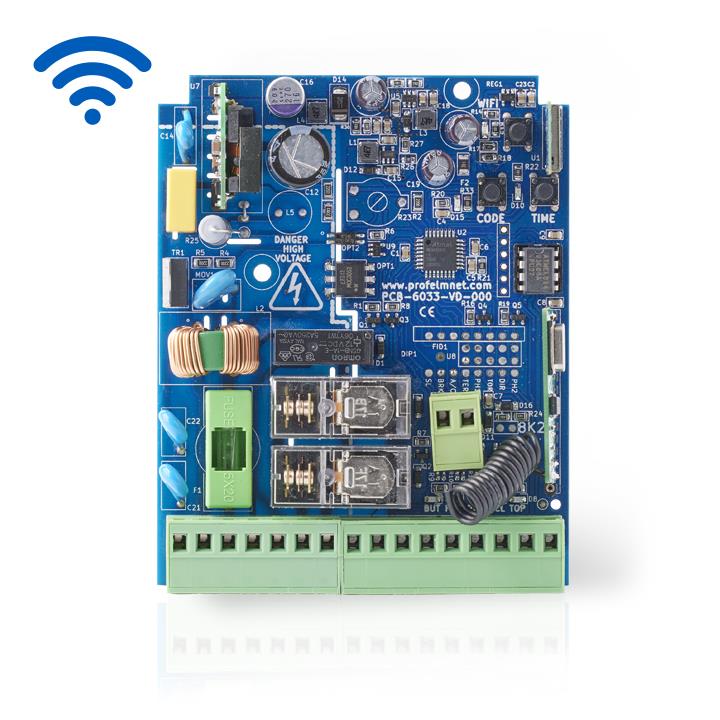

WiFi control board for sliding gate motor up to 1200 watt
6033 control board is the ideal connectivity solution for sliding and swing gates, rolling shutters and barriers that makes access smarter and easier. The user has the possibility to make all the settings of the automation via his mobile phone and also to manage his gate from wherever he is, using the WiFi network.
Technical data
Power Supply 230VAC /50 Hz
Max Motor Power 1200W
Box Dimensions 10cm X 14.50cm X 5cm
Control board Dimensions 8.5cm X 10.5cm X 00.5cm
Fuse 230VAC 5Α
Fuse 24VDC 150mA
Blinker Light power supply 230VAC
Photocell power supply 24VDC/ 100mA
Remotes Memory 300 remotes
WiFi protocoll IEEE802,11/2,4GHz
Frequency 433,92MHz
Temperature -20oC + 60oC
