Control boards
4033r

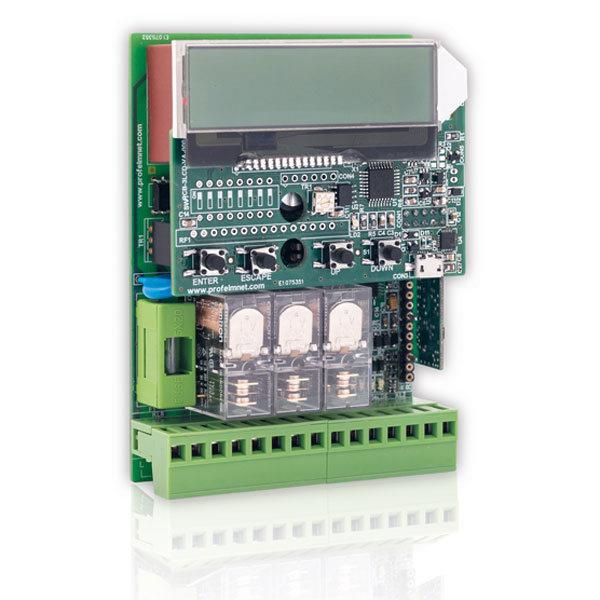

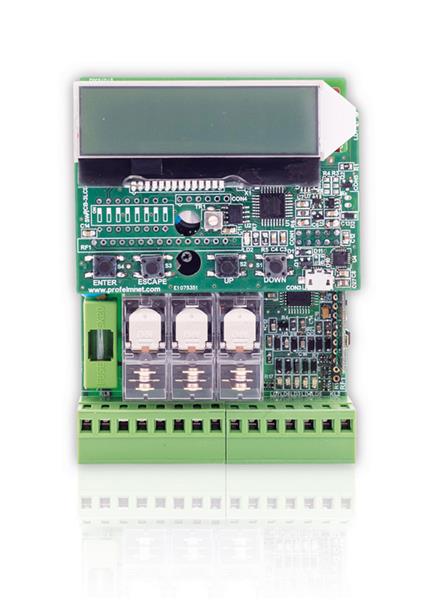

LCD control board for rolling shutter motor up to 1200 watt
Series 40 is the complete Profelmnet LCD automation product line. A combination of technology, innovation and upgraded features. Profelmnet with series 40 presents a totally sophisticated line in terms of capabilities and functions, in the smallest size of the market. User friendly menu, quick installation, one type of board for all types of installations, durability in hardware, security for the installer. Three new functions for the rolling shutter operation:
- UP-STOP-DOWN
- DEAD-MAN
- UP-STOP, first channel, DOWN-STOP, second channel
Main functions
- Power supply 230 VAC / 110 VAC
- Power handlling up to 1200 watt
- Memory up to 300 transmitters
- Pedestrial function
- Adjustable auto close
- Soft start and stop
- Input for soft-edge
- Input for photocells
- Adjustable codification
- Access control possibility
- Three different options in rolling shutter operation
- Working temperatures: -20 to +60 Celsius
- Size: 250mm X 195mm X 100mm including ABS housing
