34RW

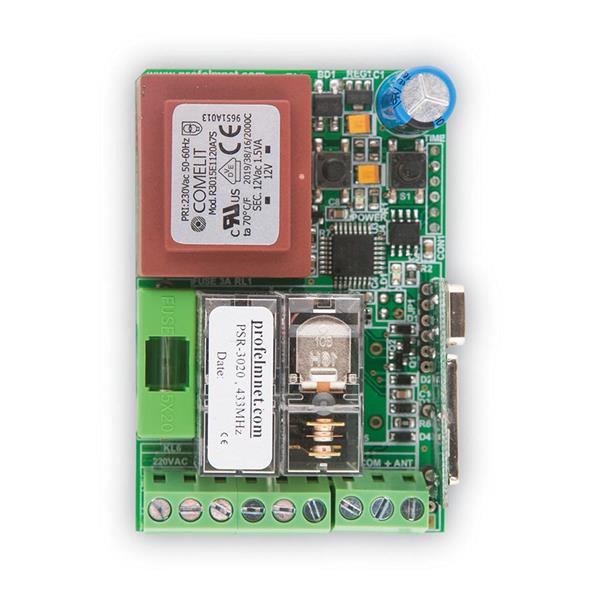

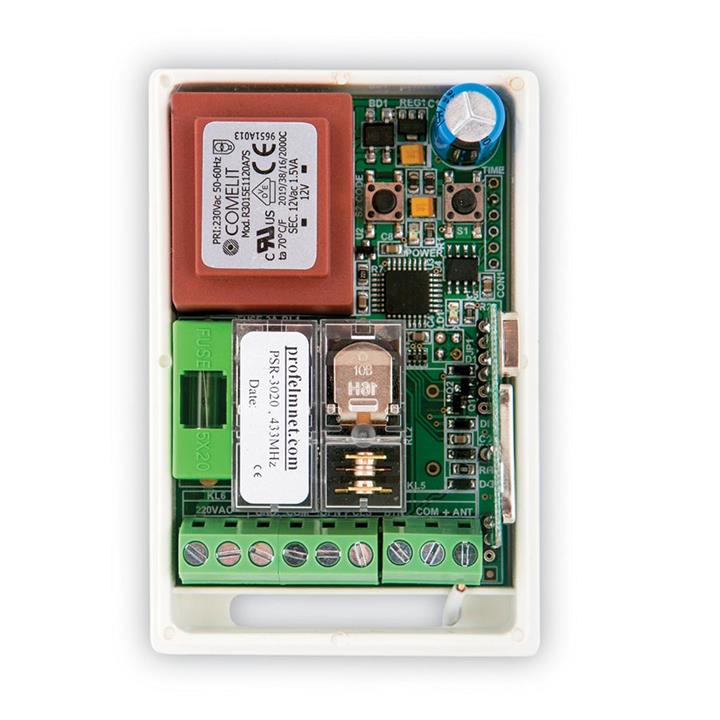

Control board for lights 230VAC
34RW is the new control panel for the wireless management of home or industrial lights. It is able to handle 2 different zones of lights up to 500 watt each. It is also compatible with the multi channel Profelmnet transmitter in order to manage 12 different light zones.
Main specification
- Absorption 10mA max. at stand-by and 25mA on relay activation
- Power 500 Watt per channel
- 150 transmitters per channel
- Operation selectable PUSH-ON or PUSH ON-OFF with jumpers
- Power supply: 230VAC
- Operating frequency 433,92MHz
- Range from 30 to 100 meters depends on the environment

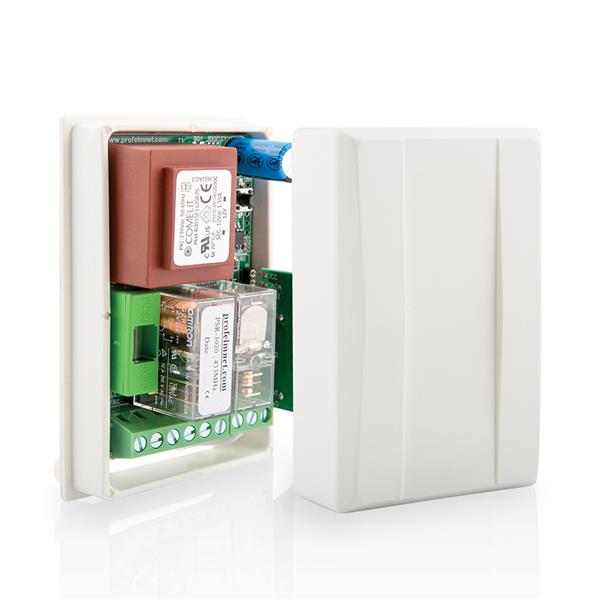

- Sizes 82X59X30mm all with ABS housings
- Working temperatures: -15ο to +60ο C
Available codes
| Product name | Codification |
| PS34RW | fixed 433.92MHz |
| PSR34RW | keeloq rolling 433.92MHz |
| PTR34RW | keeloq rolling 868.3MHz |
| PN34RW | pn rolling 433.92MHz |
