3033 glass

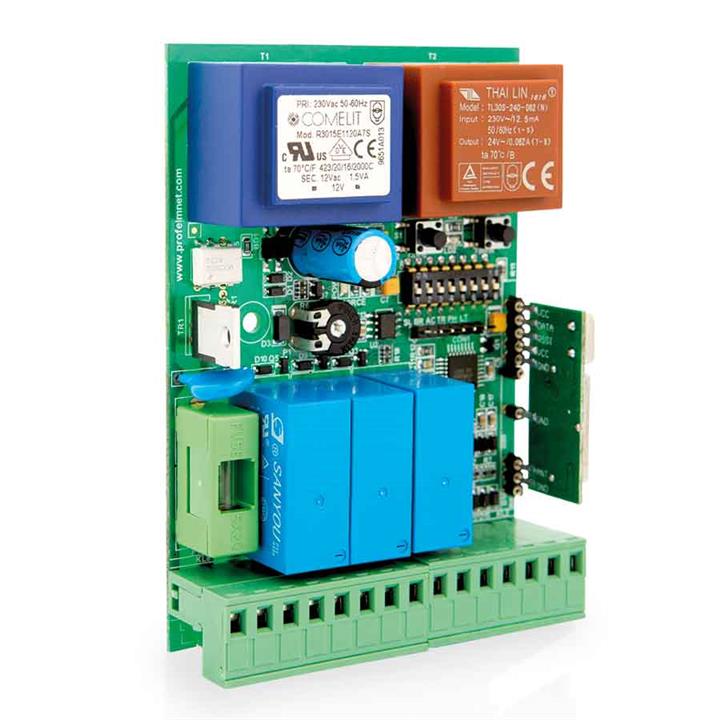

Control panel for intensive use barrier
3033 is new, multi-function control panel 110/230VAC suitable for intensive use barrier, up to 1200 watt. Durable and reliable. 300 transmitters can be stored.
Main functions
- Provides different leds that work based on each different function of the receiver
- Separate limit switch inputs for the motor
- No sparking relays for longer life time of relays
- External button: N.O contact for only opening
- Photocell contact input at 24VAC/1,1VA
- Motor brake function. It is recommended for heavy motors
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time is programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
- Provides filters for the external noises
- Working temperatures: -20oC to + 60oC
- Size: 111mm X 82mm X 30mm including ABS housing
Available codes
| Product name | Codification | Compatible Transmitters |
| PS3033 | fixed 433.92MHz | PSD-36T, PS-46T |
| PSR3033 | keeloq rolling 433.92MHz | PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T |
| PTR3033 | keeloq rolling 868.3MHz | PTR-15T |
| PN3033 | pn rolling 433.92MHz | PN-46T |
